SEF Roof fan

SEF

Roof fan

Fire gas fan for roof. Approved for temperatures up to 400°C for 120min (400/2H) and approved as both operating and evacuation fan in accordance with EN12101-3:2015.
SEF
SEF

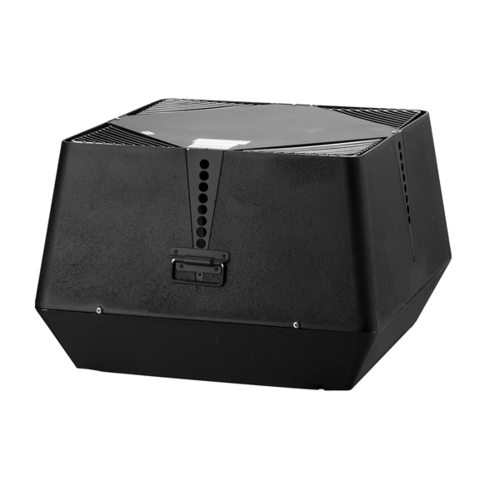

SEF combustion gas fan with vertical exhaust is approved for temperatures up to 400°C for 120 min.

SEF and TGKS roof cowl has been tested and approved as a general operations fan and evacuation fan in accordance with EN12101-3:2015. Certificate: 0402-CPD-453701.

SEF is made of die-cast aluminium and surface treated with hammer varnish, which makes it light, mechanically strong and extremely resistant to corrosion (Corrosion class C4 according to EN ISO 12944-2).

The motor is a temperature resistant, sealed asynchronous motor with lifetime lubricated ball bearings. This ensures a long service life, high efficiency and low noise levels.

SEF is supplied as standard with vibration damper, armoured cable, mineral wool mat and safety screws which ensure the fan stays attached to the roof cowl whatever the weather or conditions.
SEF

Product advantages

  • Certified combustion gas fan (smoke exhaust extractor) F400/2H
  • Approved for 400°C in 120 min.
  • Operations and evacuation fan
  • To be mounted on TGKS roof cowl
  • To be mounted on FPTS mounting panel
References Insulation material RPM
SEF250

1400

SEF315

1400

SEF400

1400

SEF450

1400

SEF
References A (mm) E (mm) Ø D (mm) Weight (kg)
SEF250

335

100

250

26

SEF315

380

115

315

35

SEF400

430

130

400

44

SEF450

645

220

400

66

References Motor 3 x 400 V Amp/kW
SEF250

0,4 / 0,1

SEF315

1,1 / 0,32

SEF400

1,3 / 0,42

SEF450

3,4 / 1,5

The fan is fitted onto the roof cowl using the supplied vibration dampers, This ensures vibration-free operation, while the mineral wool mat positioned on the spigot forms a seal between the fan and the roof cowl. The safety bolts are fitted in the roof cowl.

The TGKS roof cowl is composed of galvanised sheet metal, 50 mm mineral wool that insulates against sound and condensation, mesh, and an inner housing of perforated galvanised sheet metal.

SEF can also be mounted on an existing roof cowl using a FPTS mounting panel.

Products and accessories references

  • SEF250
    SEF250
  • SEF315
    SEF315
  • SEF400
    SEF400
  • SEF450
    SEF450
