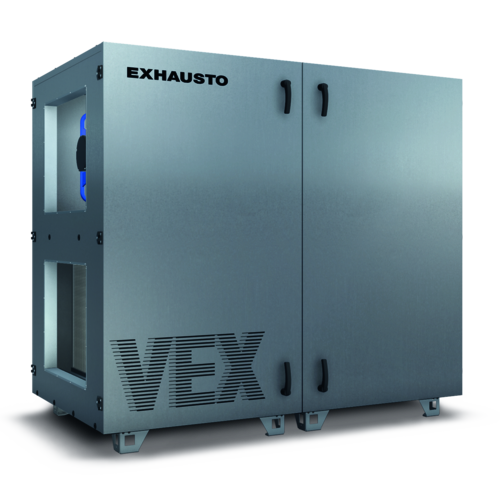

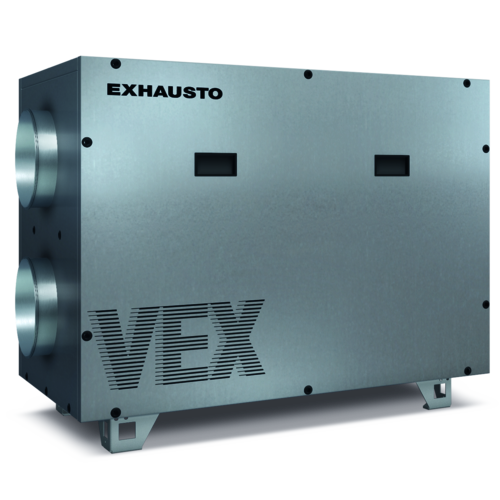

VEX1000RS CMEV air handling unit

VEX1000RS

CMEV air handling unit

New compact series with rotary heat exchanger in horizontal design. With a total of 11 unit sizes for airflows up to 8500 m³/h as well as a wide range of accessories, you will easily find a VEX1000 that fits exactly to your needs.
VEX1000RS
VEX1000RS
New compact series with rotary heat exchanger in horizontal design. With a total of 11 unit sizes for air volumes up to 8500 m³/h and a wide accessory program, you will easily find a VEX1000 that fits precisely to your needs. We call it Perfect Fit.

The Eurovent-certified VEX1000 series is equipped with highly efficient and energy optimized components. All components are easy to pull out for inspection, service, repair, or cleaning.

VEX1000 modules are optimized to deliver the highest possible air capacity with the smallest possible space requirement. All modules from VEX1005 to VEX1065 can pass through a standard door. If you need more air capacity or have extra limited access conditions, the product can be delivered as SPLIT, where the unit is assembled after transportation.

The automatic leakage control function, ALC™, gives you all the benefits of a rotary heat exchanger while eliminating the recirculation of particles, aerosols, viruses, etc.

VEX1000 is delivered with integrated EXcon+ automation, which has a built-in WiFi connection for quick connection with tablet, HMI, or PC. A new intuitive user interface makes the installation, commissioning, and adjustment of the indoor climate in your building easy and quick.
VEX1000RS

Product advantages

  • Compact design - High performance with minimum space requirements
  • All modules from VEX1005 to VEX1065 fit through a standard door
  • Removable components and integrated coils make installation, maintenance, and cleaning easy
  • 11 unit sizes up to 8500 m³/h
  • Can be delivered as SPLIT for extra limited access conditions
  • All types of coils (Electrical, Water, DX) are optimised for each size
  • EXcon+ automation with integrated WiFi access point and intuitive user interface
  • Multi-occupancy residential housing
  • New
  • Refurbishment
  • Non-residential buildings
  • Etablissements scolaires

VEX1000 brings fresh, filtered air into the building and recovers heat from the exhaust air using the high-efficiency heat exchanger. The incoming air can be heated and/or cooled using a complete range of integrated cooling and heating coils.

VEX1000 is a compact unit designed to deliver the highest possible air capacity with the least possible space requirement.

VEX1000RS can be equipped with automatic leakage control, ALC™, which eliminates the transfer of particles, aerosols, viruses, etc., from exhaust air to supply air through the heat exchanger. Thus, you get all the benefits of a rotary heat exchanger without leakage:

  • Moisture transfer provides improved indoor climate and higher productivity
  • Does not require defrosting
  • Saves energy by cooling recovery
  • No need to handle condensation
  • Compact design

1x230V or 3x400V power supply

Mixing section (VEX1030 – 1080)

Duct silencers

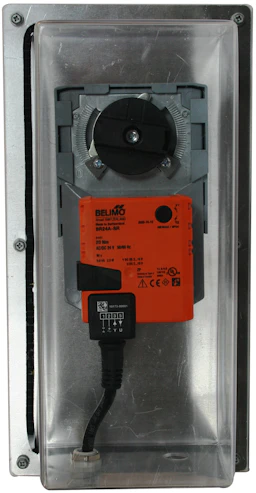

Outdoor units (Roof, plinth, doorstop, damper motor cover, electric heater for control box)

Shut-off damper

Integrated coils (Water, Electric, DX)

External casing for DX and combined water heating and cooling coil with drip tray and droplet separator

Patented automatic leakage control (ALC™)

Rotating heat exchanger with sorption and epoxy coating

Choice between bag and panel filter

Choice between integrated EXcon+ control, controller ready or without control

Flexible duct connections

Inlet and exhaust hoods

Class 3 damper

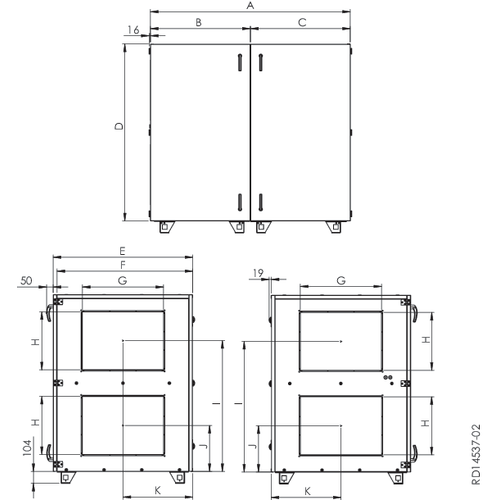

References A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) I (mm) J (mm) K (mm) L (mm) Ø (mm) Weight (kg)
VEX1005RSR

1307



855

720

683



234

617

360

310

250

172

VEX1005RSL

1307



855

720

683



234

617

360

310

250

172

VEX1010RSR

1347



1135

720

683



274

794

355

305

315

207

VEX1010RSL

1347



1135

720

683



274

794

355

305

315

207

VEX1015RSR

1461



1135

809

772



306

825

400

350

400

238

VEX1015RSL

1461



1135

809

772



306

825

400

350

400

238

VEX1020RSR

1461



1135

905

868



311

825

450

400

400

255

VEX1020RSL

1461



1135

905

868



311

825

450

400

400

255

VEX1030RSR

1660

830

830

1339

1016

970

500

400

980

355

500



349

VEX1030RSL

1660

830

830

1339

1016

970

500

400

980

355

500



349

VEX1035RSR

1660

830

830

1339

1117

1071

500

400

980

355

550



381

VEX1035RSL

1660

830

830

1339

1117

1071

500

400

980

355

550



381

VEX1045RSR

1730

865

865

1524

1217

1172

700

500

1125

400

600



450

VEX1045RSL

1730

865

865

1524

1217

1172

700

500

1125

400

600



450

VEX1050RSR

1730

865

865

1524

1319

1274

700

500

1125

400

650



481

VEX1050RSL

1730

865

865

1524

1319

1274

700

500

1125

400

650



481

VEX1060RSR

1800

900

900

1734

1403

1357

900

500

1280

450

700



548

VEX1060RSL

1800

900

900

1734

1403

1357

900

500

1280

450

700



548

VEX1065RSR

1800

900

900

1734

1493

1460

900

500

1280

450

750



597

VEX1065RSL

1800

900

900

1734

1493

1460

900

500

1280

450

750



597

VEX1080RSR

2104

1052

1052

1906

1609

1561

1000

700

1410

485

795



741

VEX1080RSL

2104

1052

1052

1906

1609

1561

1000

700

1410

485

795



741

References Minimum airflow Max. airflow ErP (m³/h) Max. airflow (m³/h)
VEX1005RSR

110

850

1090

VEX1005RSL

110

850

1090

VEX1010RSR

130

1240

1295

VEX1010RSL

130

1240

1295

VEX1015RSR

230

1730

2295

VEX1015RSL

230

1730

2295

VEX1020RSR

240

2235

2440

VEX1020RSL

240

2235

2440

VEX1030RSR

400

3015

4035

VEX1030RSL

400

3015

4035

VEX1035RSR

420

3630

4185

VEX1035RSL

420

3630

4185

VEX1045RSR

610

4600

6175

VEX1045RSL

610

4600

6175

VEX1050RSR

630

5300

6375

VEX1050RSL

630

5300

6375

VEX1060RSR

630

6180

6330

VEX1060RSL

630

6180

6330

VEX1065RSR

650

7195

7550

VEX1065RSL

650

7195

7550

VEX1080RSR

1030

8500

10300

VEX1080RSL

1030

8500

10300

MECHANICAL PERFORMANCE: In accordance with DS/EN 1886 and certified by Eurovent

  • Strength of unit casing: D2 (M)
  • Leakage at negative pressure of -400 Pa: L1 (M)
  • Leakage at positive pressure of +700 Pa: L2 (M)
  • Filter bypass leakage: F9 at negative and positive pressure
  • Thermal transmittance: T2 (M)
  • Thermal bridging factor: TB2

VEX1000 delivered fully tested in either 1 or 2 modules from the factory.

The product can be delivered on adjustable feet or mounted together on a plinth.

Automation and electrical panels are included in a separate automation box, which can be mounted next to the unit or on the wall.

A quick guide is included, which instructs on easy and fast assembly of the product. Detailed instructions and service guides are easily accessed via the QR code on the front of the unit.

For projects with extra limited access conditions, VEX1000 can be delivered as SPLIT, where the unit can be easily and quickly disassembled, transported into the building, and reassembled.

VEX1000 can be delivered with 3 control options:

  • Integrated EXcon+ control (Standard) – The unit is equipped with EXcon+. All internal electrical and control components in the unit are connected to the included control box and tested from the factory.
  • Controller Ready (Option) – All internal electrical and control components in the unit are connected to the electrical and control box, which is prepared for the installation of alternative control chosen by the customer. (External control components are not included)
  • Without control (Option) – The unit is delivered without a control box, control, electrical wiring, and sensors. The customer is responsible for their own electrical and control setup. (Controls and motors for rotating heat exchanger, fans, and dampers are included)

The new EXcon+ control ensures optimal indoor climate management in virtually all application areas.

The intuitive user interface adapted to predefined user groups and optimized calendar function ensures easy and quick setting and adjustment of the indoor climate.

EXcon+ control is used to manage, among other things, air flow, heating, and cooling. How and when control switches between built-in functions are set in the operating program. The program can, if necessary, be overridden by temporary manual control, after which it returns to the active operating program.

Choosing EXcon+ provides, in addition to a wide range of standard control modes, the opportunity to use EXHAUSTO's patented Automatic Leakage Control (ALC™) and Dynamic Pressure Control (aDCV).

  • Automatic Leakage Control (ALC™) allows taking advantage of a rotary heat exchanger without transferring contaminated air via the heat exchanger.
  • Dynamic Pressure Control (aDCV) enables optimized operation with constant pressure regulation of ventilation systems with variable air volumes. Through the patented adaptive pressure regulation, up to 20% energy savings can be achieved compared to a demand-controlled system with constant pressure regulation (DCV).

EXcon+ control can be operated from a control panel, BMS, or web server over a network or via integrated WiFi. WiFi can be easily accessed from your tablet or PC by following the quick guide that comes with the control box.

EXcon+ network communication supports BacNet over TCP/IP and MODBUS over RS485 or TCP/IP.
