VEX4000 - INTEGRATED COOLING
Modul
VEX4000 - INTEGRATED COOLING
Modul

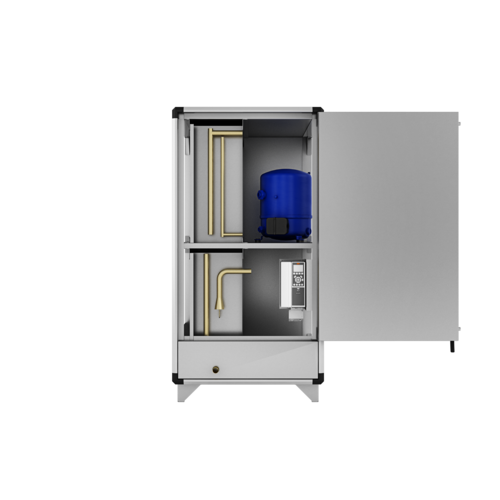

Complete integrated DX cooling system with cooling coil in supply air and coil for excess heat dissipation in exhaust air.
VEX4000 - INTEGRATED COOLING
INTEGRATED DX COOLING (IC)
The integrated cooling solution is state-of-the-art, with mass flow regulating compressors and electronic expansion valves. This gives a minimum refrigerant charge, which for the function will give a good EER (Energy Efficiency Rate).
The solution is available in two variants:
> with integrated rotor, which enables cooling recoveery (ICC)
> without integrated rotor, supplied in smaller moduls (IC)
The integrated cooling solution is state-of-the-art, with mass flow regulating compressors and electronic expansion valves. This gives a minimum refrigerant charge, which for the function will give a good EER (Energy Efficiency Rate).
The solution is available in two variants:
> with integrated rotor, which enables cooling recoveery (ICC)
> without integrated rotor, supplied in smaller moduls (IC)
Product advantages
- Complete integrated DX cooling solution with low energy consumption
- No need for additional cooling installations
- 2 variants with and without integrated rotor offer flexibility to find the best solution in terms of energy efficiency and logistics.
| VEX modele | Height (mm) | Length (mm) | Width (mm) |
|---|---|---|---|
| VEX4010 | 1309 | 820 | 1055 |
| VEX4020 | 1309 | 820 | 1275 |
| VEX4030 | 1499 | 820 | 1549 |
| VEX4040 | 1599 | 820 | 1630 |
| VEX4050 | 1744 | 820 | 1755 |
| VEX4060 | 2069 | 1100 | 1930 |
| VEX4070 | 2069 | 1200 | 2115 |
| VEX4080 | 2494 | 1200 | 2325 |
| VEX4090 | 2744 | 1300 | 2625 |
| VEX4100 | 3024 | 1300 | 2895 |
1 software
-
Product selection program for calculation of compact and modular units.
