DTV Roof fan

DTV

Roof fan

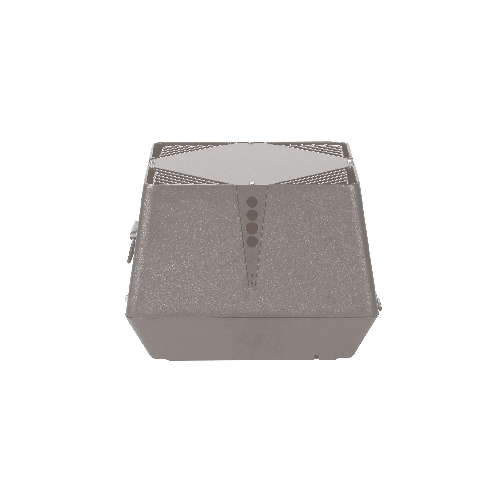

Roof fan with vertical exhaust - for extraction. DTV is made from cast aluminium, giving it a high corrosion resistance. DTV can be mounted on roof cowl TGK.
DTV
Download CAD Library file
DTV
DESCRIPTION:
The DTV roof fan is an extraction fan manufactured in cast aluminium, ensuring long-term, problem-free operation. The TGK roof cowl is available for this, ensuring simple and correct ventilation.

The DTV roof fan has a backward-curved B impeller in aluminium with a vertical exhaust, and can be opened for cleaning. DTV is available in 6 sizes: DTV160, -200, -250, -315, -400, and -450.

MOTORS
DTV160 and -200 have a single-phase motor, while the other models have an EC motor.

Get an overview of the individual sizes below.

TEMPERATURE
In normal operation, DTV tolerates temperatures up to 60 °C.

Combustion-gas fan
If there is a need for a certified combustion gas fan, we draw your attention to the SEF roof fan or FSB box fan, described under the product group Fire Safety.
DTV

Product advantages

  • High corrosion resistance
  • Backward curved blades
  • High efficiency
  • Low operating costs
  • Can be mounted on roof cowl TGK
References Conditions Insulation material Supply (power cable)
DTV160

Conditions:

* I is the maximum absorbed current throughout the control range - or the full load current if this is larger

** P1 is the maximum absorbed power from the mains supply, where P2 is the motor's nominal output.

Stated data are for t = 20°C

Density = 1.2 kg/m3

Gas temperature: min. -12°C, max. +60° C

Ambient temperature: Max. +40°C

Pressure ratio: < 1,11

3 x 0,75 mm2

DTV200

Conditions:

* I is the maximum absorbed current throughout the control range - or the full load current if this is larger

** P1 is the maximum absorbed power from the mains supply, where P2 is the motor's nominal output.

Stated data are for t = 20°C

Density = 1.2 kg/m3

Gas temperature: min. -12°C, max. +60° C

Ambient temperature: Max. +40°C

Pressure ratio: < 1,12

3 x 0,75 mm2



3 x 0,75 mm2



3 x 0,75 mm2

DTV25041EC2
DTV31541EC2
DTV40041EC2
DTV45041EC2
References Max. Total efficiency (A-D) (%) Ventilation energy class - Average climate Efficiency level requirements ECO efficiency level during optimal operating point EC motor Nominal speed (RPM) Power supply Overload protection Engine power (kW)
DTV160

1400

1x230 V

Integral thermal cutout (TP211) in motor power circuit

0,01

DTV200

1400

1x230 V

Integral thermal cutout (TP211) in motor power circuit

0,04



C

62, N(2015)



1400

1x230 V

Integral thermal cutout (TP211) in motor power circuit




C

62, N(2015)



1400

1x230 V

Integral thermal cutout (TP211) in motor power circuit


DTV25041EC2

51,9

C

62N (2015)

78,2

EC motor with integral VSD

1635

1 x 230 V - 50 Hz

Integrated in motor control

0,16

DTV31541EC2

52,4

C

62N (2015)

74,5

EC motor with integral VSD

1605

1 x 230 V - 50 Hz

Integrated in motor control

0,37

DTV40041EC2

53,7

C

62N (2015)

70,5

EC motor with integral VSD

1635

1 x 230 V - 50 Hz

Integrated in motor control

0,75

DTV45041EC2

57,1

C

62N (2015)

74,4

EC motor with integral VSD

1700

1 x 230 V - 50 Hz

Integrated in motor control

1,1

Conditions:

  • I is the maximum absorbed current throughout the control range - or the full load current if this is larger
  • P1 is the maximum absorbed power from the mains supply, where P2 is the motor's nominal output.
  • Stated data for for t = 20°C
  • Density = 1.2 /m3
  • Values are based on the use of a transition piece equivalent to OGSR
  • Gas temperature: min. -12°C, max. +60° C
  • Ambient temperature: Max. +40° C
  • Pressure ratio: < 1,11
  • other points in acc. with EC327/2011 - see product instructions

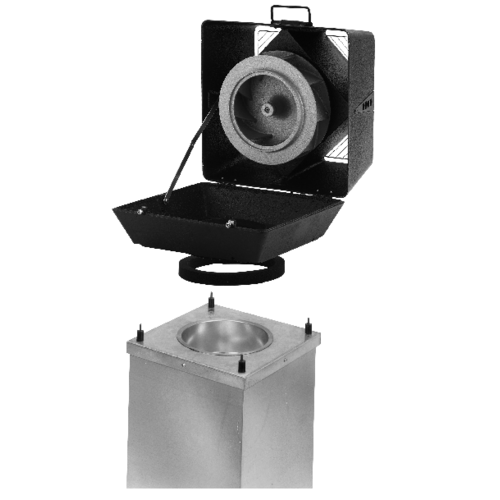

Installation DTV fans are designed for use with TGK roof cowls, for simple and optimal installation. TGK has 4 threaded connectors for fixing the DTV roof fan. Vibration-damping materials are also supplied to ensure that vibrations from DTV are not transferred to the duct system. The TGK roof cowl is insulated for sound and condensation and has a built-in cable penetration. An AOR anti-backdraught shutter and bracket can be selected as accessories.

DTV
References A (mm) B (mm) C (mm) D (mm) E Ø (mm) Weight (kg)
DTV160

250

310

240

70

160

11

DTV200

280

390

310

80

200

17

250

310

240

70

160



280

390

310

80

200


DTV25041EC2

385

485

385

100

250

28

DTV31541EC2

435

580

465

115

315

37

DTV40041EC2

500

650

525

130

400

52

DTV45041EC2

590

650

525

220

400

60

References Frequency (Hz) Max. current (A) Power supply Max. power Engine power (kW) Motor 1 x230 V Amp/kW
DTV160

50

0,14

Single-phase

0,04

0,01

0,2 / 0,01

DTV200

50

0,35

Single-phase

0,07

0,04

0,4 / 0,04

50

0,2

Single-phase

0,021



50

0,35

Single-phase

0,052


DTV25041EC2

50

1,2



0,11

0,16

1,1 / 0,18

DTV31541EC2

50

2,4



0,39

0,37

2,4 / 0,37

DTV40041EC2

50

4,4



0,78

0,75

4,4 / 0,75

DTV45041EC2

50

8



1,12

1,1

8 / 1,1

References Ventilation energy class - Average climate
DTV160
DTV200

C

C

DTV25041EC2

C

DTV31541EC2

C

DTV40041EC2

C

DTV45041EC2

C

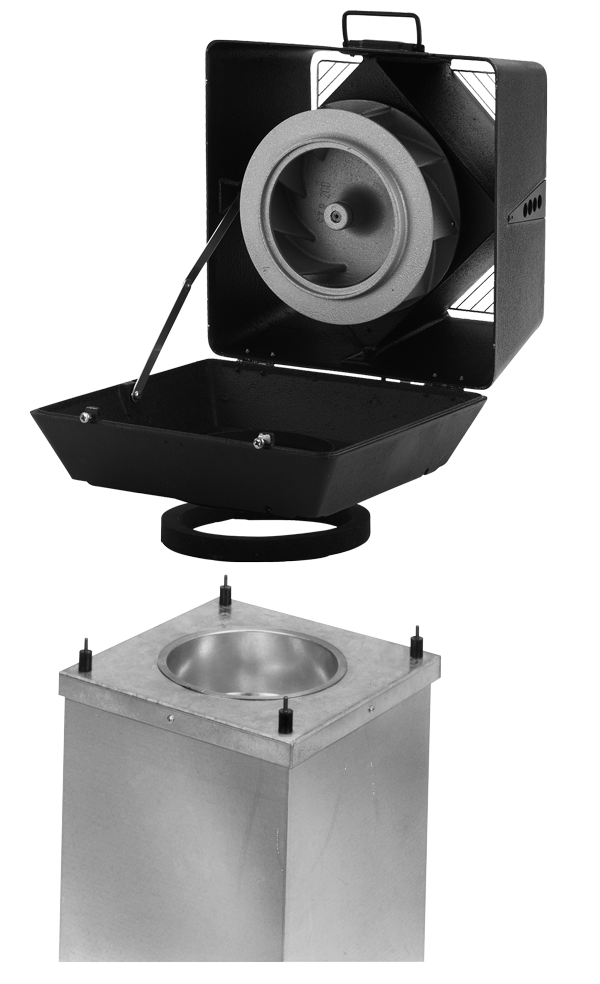

DESIGN

DTV is made of cast aluminium, which gives it a high corrosion resistance (Corrosion class C4 according to EN ISO 12944–2). It is painted in black RAL 7021, a suitable colour for most roofs.

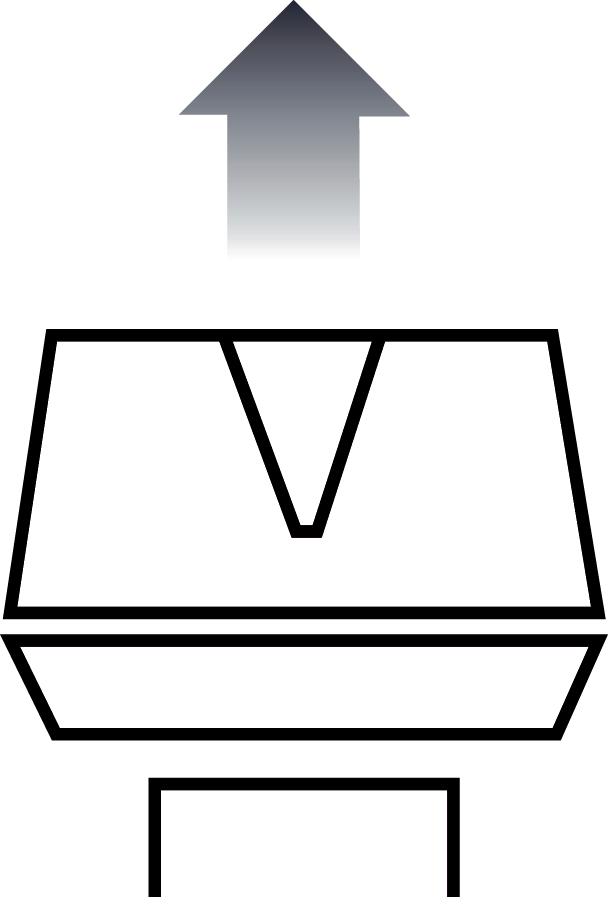

VERTICAL EXHAUST

DTV roof fan is an extract fan with vertical exhaust.

This prevents soiling of the roof and the downdraught of polluted air. It is also less noisy.

FAN IMPELLER

DTV roof fan is ideal for ventilation tasks requiring efficient and economical ventilation.

The specially developed centrifugal impeller with backward curved blades ensures high efficiency and low operating costs

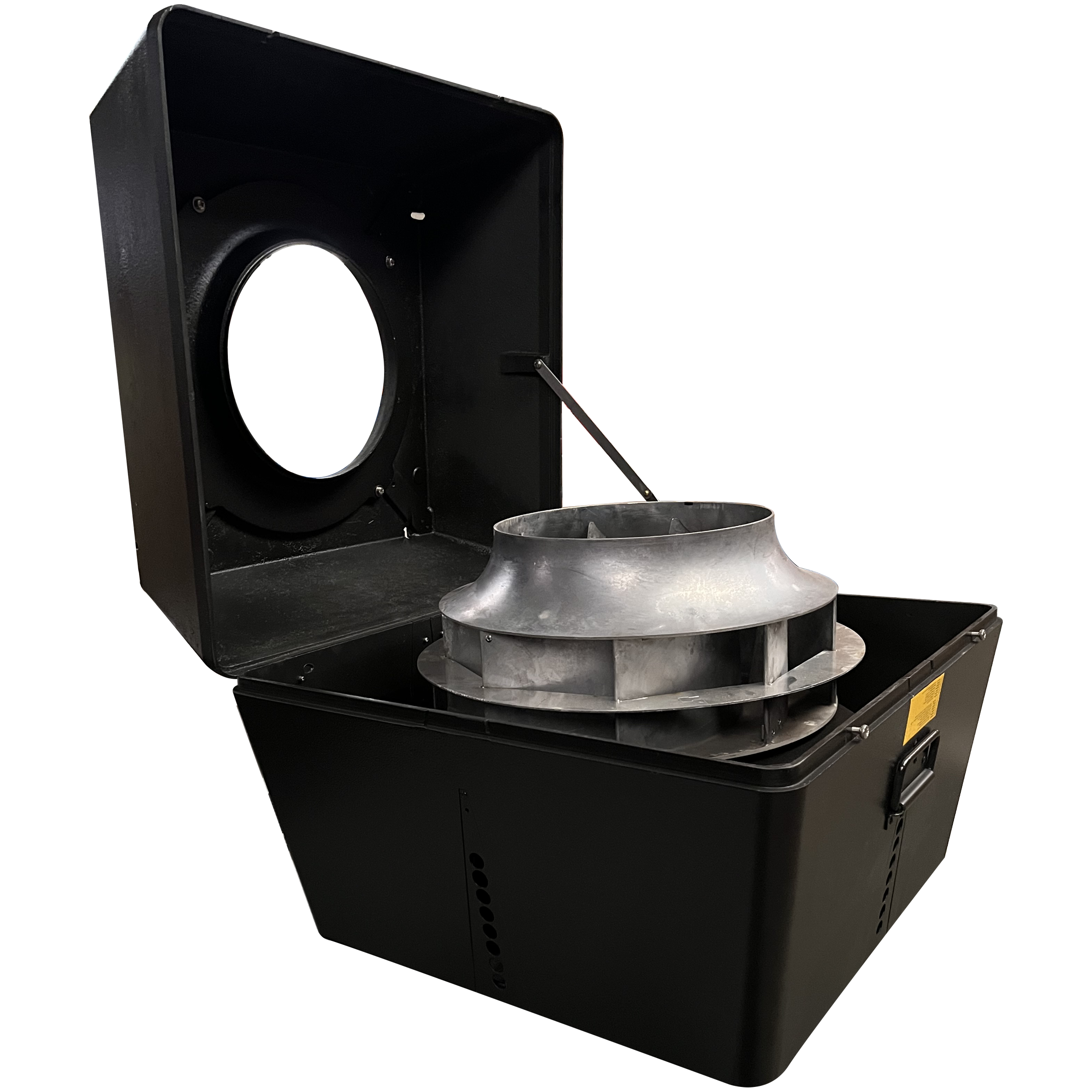

SERVICE

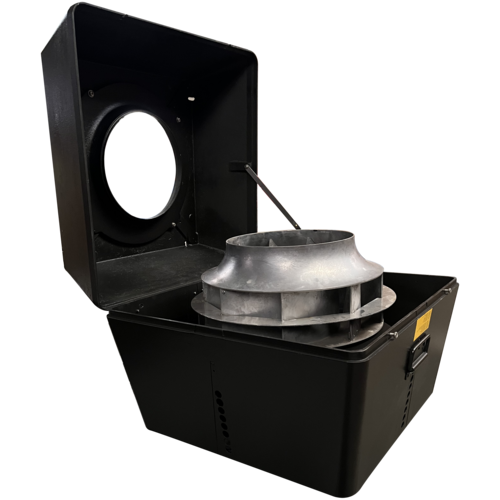

DTV roof fan is easy to open for cleaning and maintenance.

DTV fans are designed for use with TGK roof cowls, for simple and optimal installation.

TGK has 4 threaded connectors for fixing the DTV roof fan. Vibration-damping materials are also supplied to ensure that vibrations from DTV are not transferred to the duct system.

The TGK roof cowl is insulated for sound and condensation and has a built-in cable penetration. An AOR anti-backdraught shutter and bracket can be selected as accessories.
