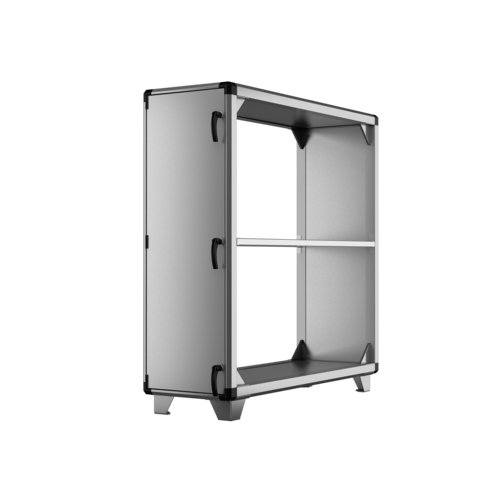

VEX4000 – EMPTY SECTION
Modul
VEX4000 – EMPTY SECTION
Modul
The SP module is a module to supplement the other modules – for support, elongation, reservation of space for future functions and to fuse inspection of neighbouring sections.
VEX4000 – EMPTY SECTION
FUNCTION AND APPLICATION
The SP module (empty section) may be used in the following cases:
- With rotary heat exchangers and in other locations where functions cannot be inspected from adjacent sections.
- As support for overlying protruding sections for inlets and outlets in high units.
- As an extension of overlying sections to avoid vertical pipes running close to the unit, preventing doors opening in a section.
- As preparation for later expansion of functions or for space for sensors, thermometers, etc. Inspection spaces are supplied with doors.
The SP module (empty section) may be used in the following cases:
- With rotary heat exchangers and in other locations where functions cannot be inspected from adjacent sections.
- As support for overlying protruding sections for inlets and outlets in high units.
- As an extension of overlying sections to avoid vertical pipes running close to the unit, preventing doors opening in a section.
- As preparation for later expansion of functions or for space for sensors, thermometers, etc. Inspection spaces are supplied with doors.
SPS - Smoke evacuation section
SPS is an empty section with a spigot at the top. The spigot contains a damper which opens if the need arises for smoke evacuation in the duct system. The extract air fan is thus used as a smoke exhaust extractor, so an additional smoke extractor is not required.
| VEX modele | ½ Height (mm) | Height (mm) | Length (mm) | Width (mm) |
|---|---|---|---|---|
| VEX4010 | 702 | 1309 | 526 | 1055 |
| VEX4020 | 702 | 1309 | 526 | 1275 |
| VEX4030 | 797 | 1499 | 526 | 1549 |
| VEX4040 | 847 | 1599 | 526 | 1630 |
| VEX4050 | 919 | 1744 | 526 | 1755 |
| VEX4060 | 1077 | 2069 | 526 | 1930 |
| VEX4070 | 1077 | 2069 | 526 | 2115 |
| VEX4080 | 1209 | 2494 | 526 | 2325 |
| VEX4090 | 1334 | 2744 | 526 | 2625 |
| VEX4100 | 1474 | 3024 | 526 | 2895 |
