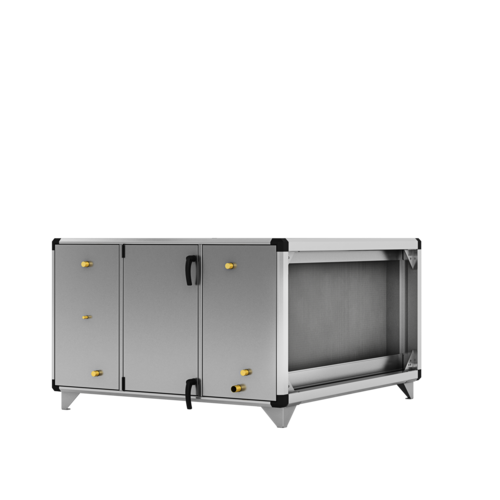

FUNCTION AND APPLICATION This HWR heat recovery coil has been specially manufactured for a so-called shop solution, in which surplus heat from refrigerators etc. is recycled. This means that surplus heat from refrigerators can be used to heat up the supply air. The water is supplied through pipes which exit the unit at the front. The number of pipes and circuits depends on the applicable heating or cooling requirement.

Design

HWR heat recovery coils are made from copper piping with aluminium fins integrated in steel panel frames.

Connection

Pipe connections and panels must be dismounted prior to pulling out.

Design options

Heat recovery coils are available in different versions with several combinations of cooling and heating coils.

Dimension table

Section with one built-in coils
VEX modele	½ Height (mm)	Height (mm)	Length (mm)	Width (mm)
VEX4010	702	1309	480	1055
VEX4020	702	1309	480	1275
VEX4030	797	1499	480	1549
VEX4040	847	1599	480	1630
VEX4050	919	1744	480	1755
VEX4060	1077	2069	480	1930
VEX4070	1077	2069	480	2115
VEX4080	1209	2344	480	2325
VEX4090	1334	2594	480	2625
VEX4100	1474	2874	480	2895
Section with two built-in coils
VEX modele	½ Height (mm)	Height (mm)	Length (mm)	Width (mm)
VEX4010	702	1309	1404	1055
VEX4020	702	1309	1404	1275
VEX4030	797	1499	1404	1549
VEX4040	847	1599	1404	1630
VEX4050	919	1744	1404	1755
VEX4060	1077	2069	1404	1930
VEX4070	1077	2069	1404	2115
VEX4080	1209	2344	1404	2325
VEX4090	1334	2594	1404	2625
VEX4100	1474	2874	1404	2895
