VEX4000 - SOUND ATTENUATION Modul

VEX4000 - SOUND ATTENUATION

Modul

The integrated acoustic damper module offers great flexibility with many placement options in the unit. The acoustic baffles can be easily removed and cleaned.
See references
VEX4000 - SOUND ATTENUATION
The integrated sound attenuator is a module for VEX4000. The acoustic attenuator is available in several lengths, allowing sound attenuation and pressure loss to be optimized.

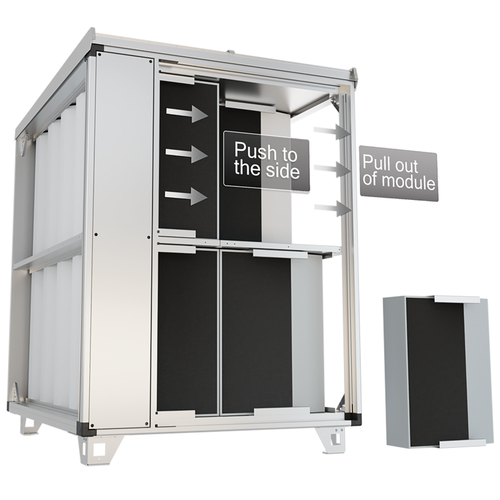

It is possible to position the acoustic module so that it meets the requirements of RLT01 and VDI 6022. All materials are VDI 6022 approved. The acoustic baffles can easily be removed from the module and cleaned.
  • Multi-occupancy residential housing
  • New
  • Refurbishment
  • Non-residential buildings
  • Schools

The integrated acoustic damper is a module for the VEX4000. The acoustic damper is available in several lengths, allowing noise reduction and pressure loss to be optimised.

Depending on how the integrated acoustic damper section is configured (length and number of baffles), significant noise reduction can be achieved. The precise noise reduction, which is included in the overall sound picture, is calculated using the product selection program.

The integrated acoustic damper section offers many placement options, thereby meeting the requirements of RLT01 and VDI 6022.

VEX moduleLength module 900 mm (mm)Length module 1200 mm (mm)Height 2-strand module (mm)Height 1-strand module (mm)Width (mm)
40101100140413097021055
40201100140413097021275
40301100140414997971549
40401100140415998471630
40501100140417449191755
406011001404206910771930
407011001404206910772115
408011001404234412092325
409011001404259413342625
410011001404287414742895
