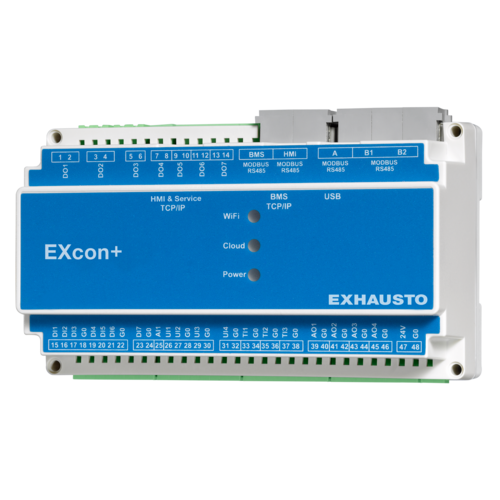

EXcon+ Control system

EXcon+

Control system

The new EXcon+ automatic system ensures optimal indoor climate control in virtually all application areas. VEX1000 is equipped with EXcon+ automatic system.
See references
EXcon+
The new EXcon+ automatic ensures optimal control of the indoor climate in virtually all application areas

The intuitive user interface adapted to predefined user groups and optimized calendar function ensures easy and quick adjustment of the indoor climate

The EXcon+ automatic is used for controlling, among other things, air flows, heating, and cooling. How and when the automatic switches between the built-in functions is set in the operation program. The program can, if necessary, be overridden by temporary forced controls, after which it returns to the active operation program

Choosing EXcon+ allows, in addition to a wide range of standard control forms, the use of EXHAUSTO's patented Automatic Leakage Control (ALC) and Dynamic Pressure Control (aDCV)

- Automatic Leakage Control (ALC) allows all the benefits of a rotary heat exchanger without the transfer of contaminated air via the heat exchanger

- Dynamic Pressure Control (aDCV) makes it possible to optimize operation with constant pressure regulation of ventilation systems with variable air flows. Through the patented adaptive pressure regulation, energy savings of up to 20% can be achieved compared to a demand-controlled system with constant pressure regulation (DCV)

The EXcon automatic can be controlled from a control panel, CTS, or web server via network or integrated WiFi. WiFi is easily accessed from your tablet or PC by following the quick guide that comes with the automatic box

EXcon+ network communication supports BacNet over TCP/IP and MODBUS over RS485 or TCP/IP
EXcon+

Product advantages

  • User-friendly
  • Reliable
  • Cost-effective
  • Flexible
  • Wireless Communication
  • Unique energy-saving and indoor climate features

User-friendly - Built-in web server with predefined user groups and optimised calendar function ensures easy and quick indoor climate settings. - Real-time control loop report speeds up commissioning and automatic commissioning report makes documentation of indoor climate and setup easier. - Extended portal solution where up to 25 units with EXcon+ can be monitored from one web server. Reliable - Modularised BUS system for secure unit operation - Protection against unauthorised access - Effective troubleshooting and overview - Future-proof with fast processor and extended memory - Control algorithms based on EXcon installed in thousands of units Cost-effective - Simple implementation, training and maintenance - Many customisation options - High user-friendliness - Unique energy-saving features Flexible platform - 4 universal inputs and 5 configurable inputs and outputs for customer options, providing countless opportunities to customise control for the individual project. - Easy SW upgrade Flexible communication - Wireless communication with EXcon+ via WiFi - Cloud service for remote monitoring of units. - Email server for alarm notification, compatible with public providers like Google, Yahoo, etc. Unique energy-saving and indoor climate functions - EXcon+ includes a wide range of features that allow ventilation to be tailored to the usage and demand pattern of the building, thus saving energy. - Choosing EXcon+ provides, in addition to a wide range of standard control methods, the opportunity to use EXHAUSTO's patented Automatic Leakage Control (ALC) and Dynamic Pressure Control (aDCV).

Features built into the automation > Night setback > Alarm log and data log > Control by day, week, or yearly schedule > Extended operation > External forced operation with run-on > Alarm email (requires local mail server) > Summer night cooling > Outdoor temperature compensation > Automatic summer/winter changeover > Static or dynamic filter monitoring > Zone control for four zones (requires zone module), read more here > Portal solution, combined monitoring of five units with EXcon or EXact2 automation > VIA CTS: over 800 registers or objects available (modbus/bacnet) > Digital inputs for: - External alarm reset - External low, medium, and high speed - External start/stop > Digital outputs for: - A alarm - B alarm (configurable for low/high speed or summer night cooling) - Operation relay - Fire alarm - Alarm reset Control modes > Constant pressure > Constant air volume > Constant CO2 > Fan optimizer > Constant motor speed > Adaptive pressure control (Patented solution for energy optimization of VAV systems) > External 0-10 V with supply/exhaust air slave > ALC (requires accessories) Temperature control > Constant supply air temperature > Constant exhaust air temperature > Constant room temperature > Constant difference between exhaust and supply air > Summer and winter compensation > Recirculated air heating (optional) > Summer night cooling Network communication > The network communication supports BacNet over TCP/IP and MODBUS over RS485 or TCP/IP. Zone control > Zone control enables the ventilation management of up to 4 different VAV/CAV zones directly from the VEX4000 unit with EXcon Master. > This is perfect for smaller installations with zones where different rooms have different indoor climate requirements > Zone control can be used for controlling: - VAV dampers - Cooling and heating valves - Humidity - VOC/CO2 - Room temperature cooling
